A high-speed integrated linkage production line that combines five core processes in one unit: water-based ink printing, slotting, die-cutting, folder/gluer or stitcher, and automatic strapping.
Water-based ink printing, slotting, die-cutting, gluing, and automatic packaging integrated machine
Product Detail
Key Features:
One integrated line replaces multiple traditional machines.
A high-speed integrated linkage production line that combines five core processes in one unit: water-based ink printing, slotting, die-cutting, folder/gluer or stitcher, and automatic strapping. It enables one-stop production with “raw board in, finished cartons out”, serving as the key equipment for modern carton factories to achieve efficient, large-scale and intelligent manufacturing.
Parameter:
Printing and Die-cutting Department：
1.Optimized structure for printing, slotting and die-cutting. The built-in mechanism adjusts planetary gear clearance after long operation, maintaining precise motion and accurate color registration permanently.
2.Intelligent full-auto control system. All radial and axial parameters are set via touch screen; feeding, printing, slotting and die-cutting adjust automatically without manual work, greatly boosting efficiency.
3.Order storage & automatic job change in the system, ensuring faster switchover and simpler operation.
Folder Gluer Linkage Line：
1.The folder gluer linkage consists of three core sections: gluing, folding, and counting & delivery.
2.Connected inline with our printer, processed carton boards receive even adhesive on flaps, then are precisely folded by dual-side folding arms and wheels. Boards are counted, stacked automatically per preset quantity, and finished glued cartons are discharged via conveyor.

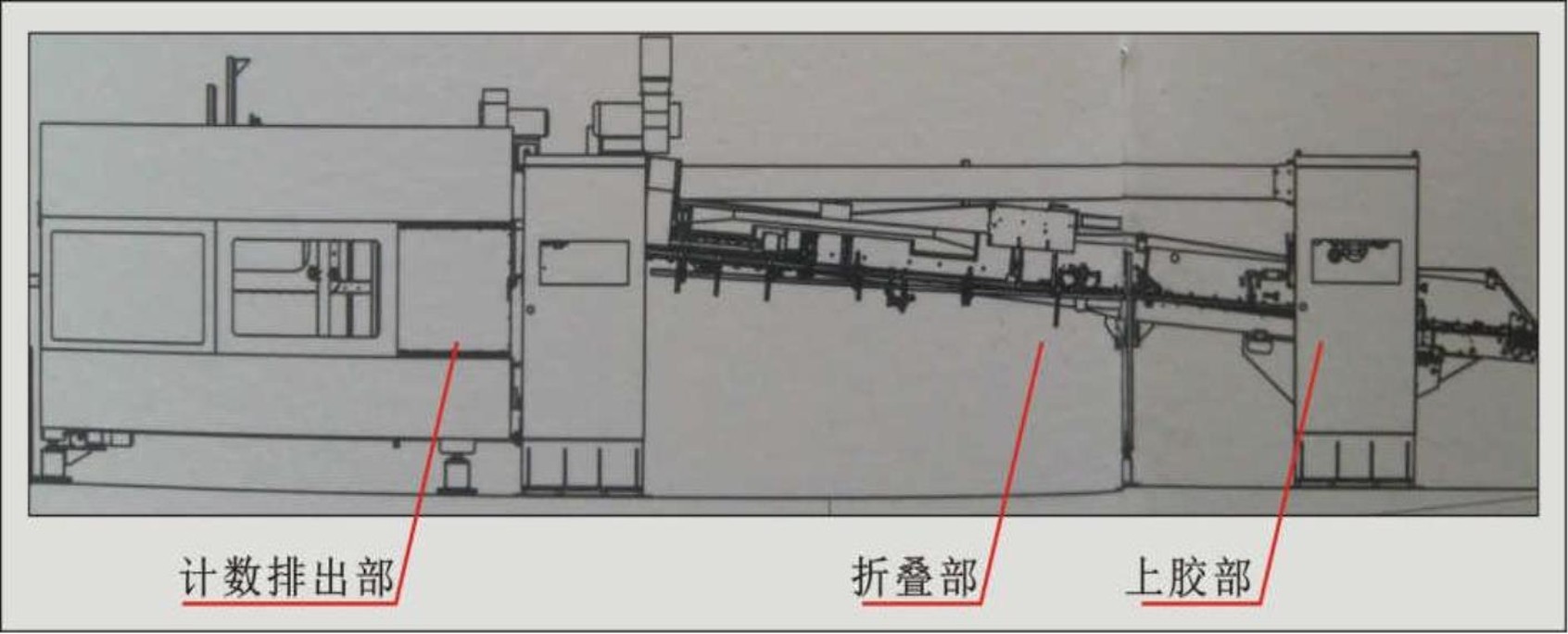

Structural Schematic Diagram
Automatic Strapping：
After finished cartons are counted and stacked, automatic strapping/packing is completed for direct warehousing and shipment.
Video:
Application Scenarios :
FAQ:
-
What are the components of a fully automatic carton production line?
1.Printing, Slotting and Die-Cutting Machine (core): Automatic paper feeding → multi-color printing → slotting / corner cutting / creasing / die-cutting, forming carton blanks in one pass. 2.Folder Gluer / Stitcher: Automatic gluing, folding and bonding (gluing), or automatic nailing for reinforcement (stitching), completing carton closure. 3.Packing / Stacking / Conveying: Automatic strapping, counting, stacking and conveying into storage, realizing unmanned operation throughout the process. 4.Master Control System: PLC + servo, realizing full-line linkage, parameter setting, fault alarm and data monitoring.
-
What is the production capacity of the fully automatic carton printing, die-cutting, gluing, stitching and packing machine?
For the fully automatic printing, die-cutting, gluing, stitching and packing machine, the conventional stable production capacity is:50,000 to 70,000 pieces per 8-hour shift for glued cartons,35,000 to 50,000 pieces per 8-hour shift for stitched cartons.High-speed models can reach 80,000 to 100,000 pieces per shift.
